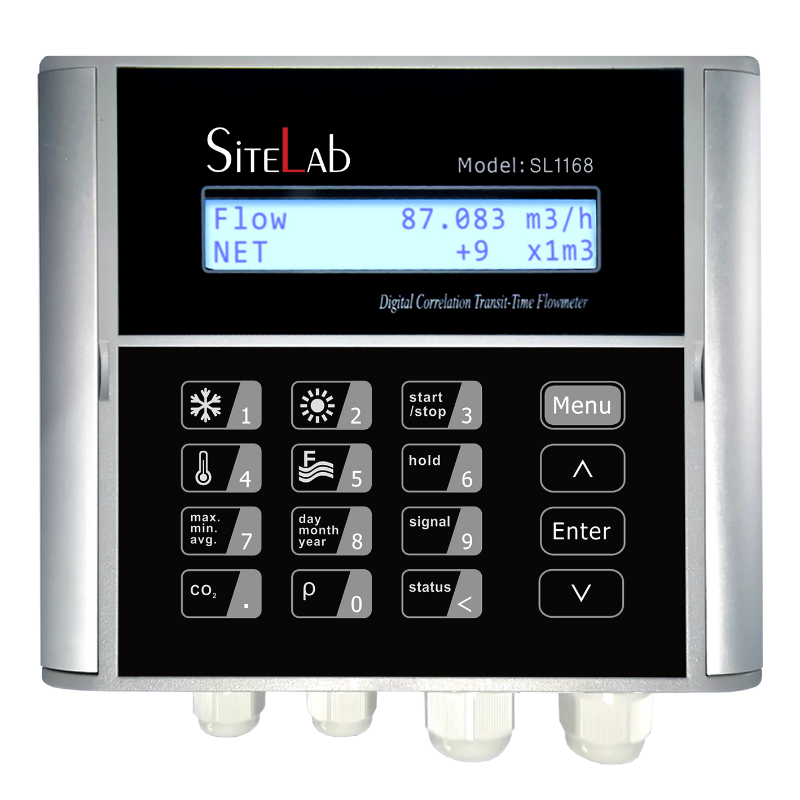

SL1168 BTU (HD) Ultrasonic Flowmeter
SL1168 BTU (HD) Ultrasonic Flowmeter
Brand : SiteLab
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 3-5 working days
Payment Terms: T/T,Cash
Main Features
Accuracy: ±1.0% Repeatability: 0.30% |
Pipe Size: 1″~ 48″(25mm~1200mm) Flow Velocity: 0.03 ~ 16 ft/s (0.01m/s ~ 5 m/s) |
Output: OCT, Relay, RS485, 4-20mA ,RTD Temperature: 32 °F ~ 176 °F ( 0℃ ~ 80℃ ) |
Pipe Material: Carbon steel, stainless steel, PVC, Copper IP Rating: Transmitter: IP65/ Transducer: IP68 |
Introduction
The SL1168 BTU (HD) Meter is a precision ultrasonic energy meter. It features a non-invasive clamp-on design for easy installation without disrupting operations, and supports multiple output options including 4-20mA, pulse output, and RS485 MODBUS for seamless integration with building management systems. With flow accuracy of ±1% and energy accuracy of ±2%, it offers reliable data. The meter has a wide pipe size range (1" to 48"), IP65/IP68 protection rating. It is ideal for optimizing energy use and reducing operational costs in modern buildings and hospitals.
Applications
l For hospital
l HVAC (Heating, Ventilation, and Air Conditioning) systemsl
l Water and wastewater management
l Process industries (chemical, pharmaceutical, food and beverage)
l Energy management and environmental monitoring
l Agriculture and irrigation systems
l Research and development
l Facilities management
l Industrial maintenance and troubleshooting
l Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.

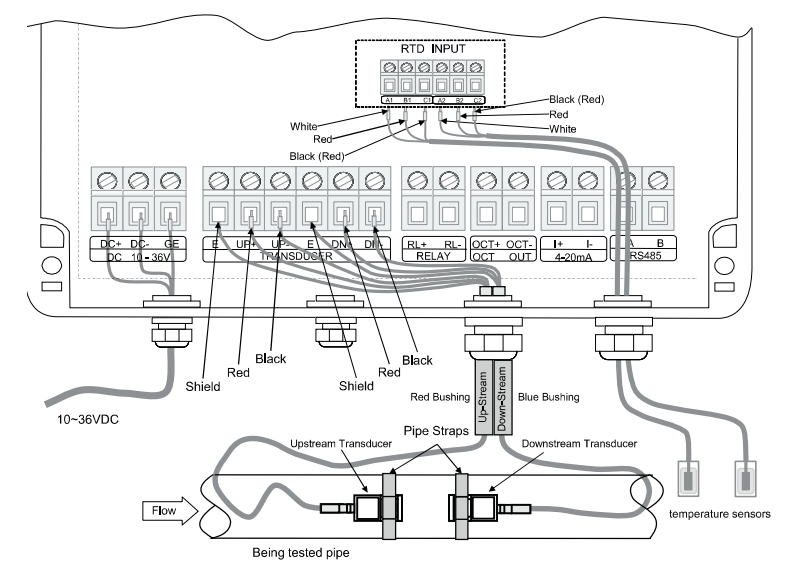

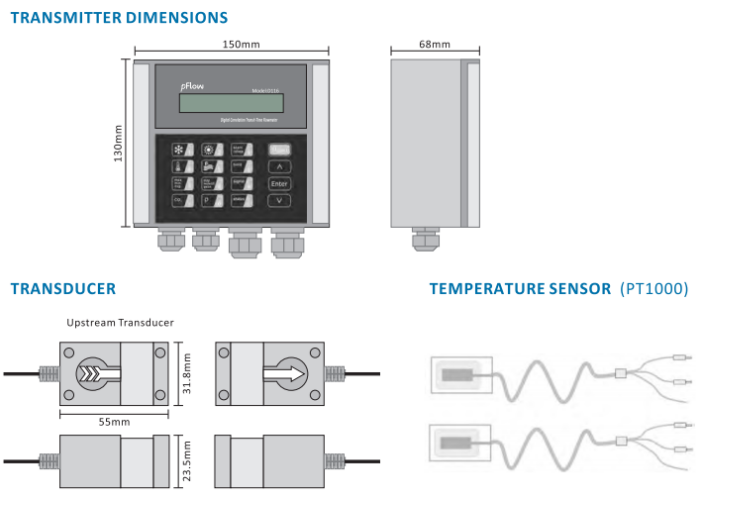

Wiring Diagram&Transmitter Dimensions
Detectable Fluids
Compatible Pipe Materials
