SLF3P POE Panel Mount & Split Ultrasonic Flowmeter
SLF3P POE Panel Mount & Split Ultrasonic Flowmeter
Brand : SiteLab
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 3-5 working days
Payment Terms: T/T,Cash
Application
Residential water measurement,Ultrapure water measurement,Monitoring of aquaculture systems,HVAC chilled water measurement,Agricultural irrigation,etc.
Highlight :DN20~DN80 mm Ultrasonic Flow Meter, No need to set up pipe material , precise measurement, ,plug and play,alloy reinforced body,POE network cable power supply.
Alloy reinforced version Clip-on Ultrasonic Flow Meter
Flow Range: | 0.03m/s ~5.0m/s(0.1ft/s ~ ±16ft/s) | Accuracy: | ±2%,（1.0~16ft/s） | |
Pipe Diameter Range: | DN20~DN80mm | Measuring Medium: | Water | |
Pipe Material: | Stainless Steel/PVC/Copper/Stainless Steel | Communication Interface: | HTTP、MQTT Protocol | |
Power Supply: | 10～36VDC/500mA | Keyboard: | 4 physical keys | |
Display: | 1.44 " LCD color screen, resolution 128 * 128 | |||
SLF3P Clip-on POE Ultrasonic Flow Meter
Alloy reinforced & compact panel mount & split POE ultrasonic flow meter
Introduction
Gentos quick measure ultrasonic flowmeter SLF3P adopts the measurement principle of transit time method. Combined with Gentos ultrasonic signal processing technology and unique flow algorithm, fluid flow in the pipeline can be accurately measured.
The product is designed with a split clamp-on structure, which is simple and convenient to install. The installation process does not need to contact the fluid medium,not stop production.
The instrument adopts POE power supply and Ethernet communication to realize cloud data . Users can manage, analyze and monitor measurement data information by access cloud data through mobile terminals and PC terminals anywhere anytime.
Advantages
lConnect a network cable and use directly
lPOE power supply, safe and convenient
lSupport online update and upgrade
lSupport mobile APP to view real-time data
lSupport WEB client to view real-time data
Functions
lFlow Control and Monitoring
lTotal traffic calculation
lWater distribution
lLeak monitoring
lEthernet communication
Transmitter Dimensions

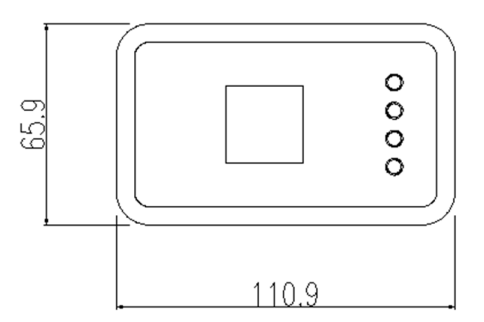

SLF3P Transmitter Dimension
SLF3P Component Parts Dimension
Pipe Diameter Comparison Table Unit：mm | ||||||||
Model | Nominal Inner Diameter of Pipe | W | W1 | L | L1 | H | Ø | |
SLF3P | DN20 | 25 | 51 | 105 | 118 | 63 | 29 | |
DN25 | 25 | 56 | 105 | 118 | 70 | 36 | ||
DN32 | 25 | 63 | 105 | 118 | 77 | 43 | ||
DN40 | 25 | 74 | 105 | 118 | 88 | 54 | ||
DN50 | 25 | 89 | 105 | 153 | 101 | 67 | ||
DN65 | 25 | 102 | 105 | 153 | 114 | 80 | ||
DN80 | 25 | 113 | 105 | 153 | 125 | 91 | ||
SLF3P Dimension
Professional Measure Single Material
Detectable Fluids
Installation
