Pure Water Mrcro SLMFR Ultrasonic Flowmeter
Pure Water Mrcro SLMFR Ultrasonic Flowmeter
Clamp On Type & Fast Installation
Could Measure PPR PVC SS Copper
LoRa & RS485 Output Optional
Introduction
1.The SLMFR uses LoRa communication, the LoRaWAN communication protocol is available.
2.It can transmit information at very low frequencies at low complexity andcost. Also it's an ultra-remote, low-power, high-availability and low-cost communication technology that can be used in different regions.
3.SLMFR adopts the ultrasonic transit time measurement principle, combined with the patented flow algorithmtechnology, it realizes accurate measurement of the fluid flow in the pipe.
Main Features
-Liquid:Water Flow

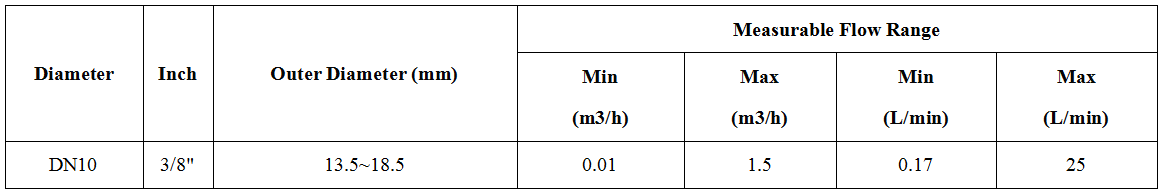

-Flow Range:0.03m/s ~5.0m/s
-Pipe Size: DN10 (OD: 13.5-18.5 mm)

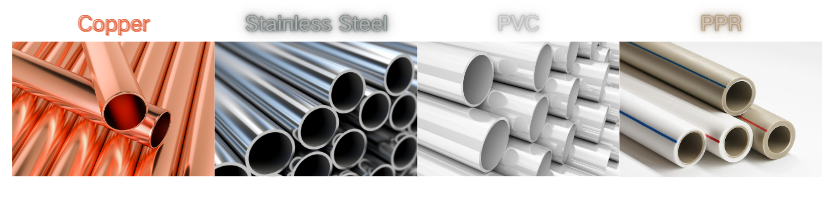

-Pipe Material:Stainless Steel / PVC / Copper / PPR
-Fluid Temperature: 0℃~60℃
Application
Pharmaceutical Equipment,Smart Farming Equipment.New Energy Equipment Supporting,Intelligent Agricultural Equipment etc.
Specifications
Performance Index | |
Flow velocity | 0.03m/s ~5.0m/s |
Accuracy | ±2.0%, (0.3m/s ~5m/s) |
Repeatability | 0.4% |
Pipe Size | DN10 |
Medium | Water |
Pipe Material | Stainless Steel, PVC, Copper, PPR |
Functional Index | |
Communication interface | Support FUJI Protocol and MODBUS Protocol |
LoRa Communication | Maximum Transmit Power: 22dBm Temperature: -40℃~85℃ LoRaWAN communication protocol is available |
LoRa Frequency selection | EU868 Frequency: 863000000~865400000, unit Hz US915 Frequency: 902300000~914900000, unit Hz CN779 Frequency: 780100000~786500000, unit Hz EU433 Frequency: 433775000~434665000, unit Hz AU915 Frequency: 915200000~927800000, unit Hz CN470 Frequency: 470300000~489300000, unit Hz AS923(HK) Frequency: 920000000~925000000, unit Hz |
Power supply | 10～36VDC/500mA |
Keyboard | 3 touch keys |
Display screen | 1.54"LCD color display, resolution 240*240 |
Temperature | Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ ) |
